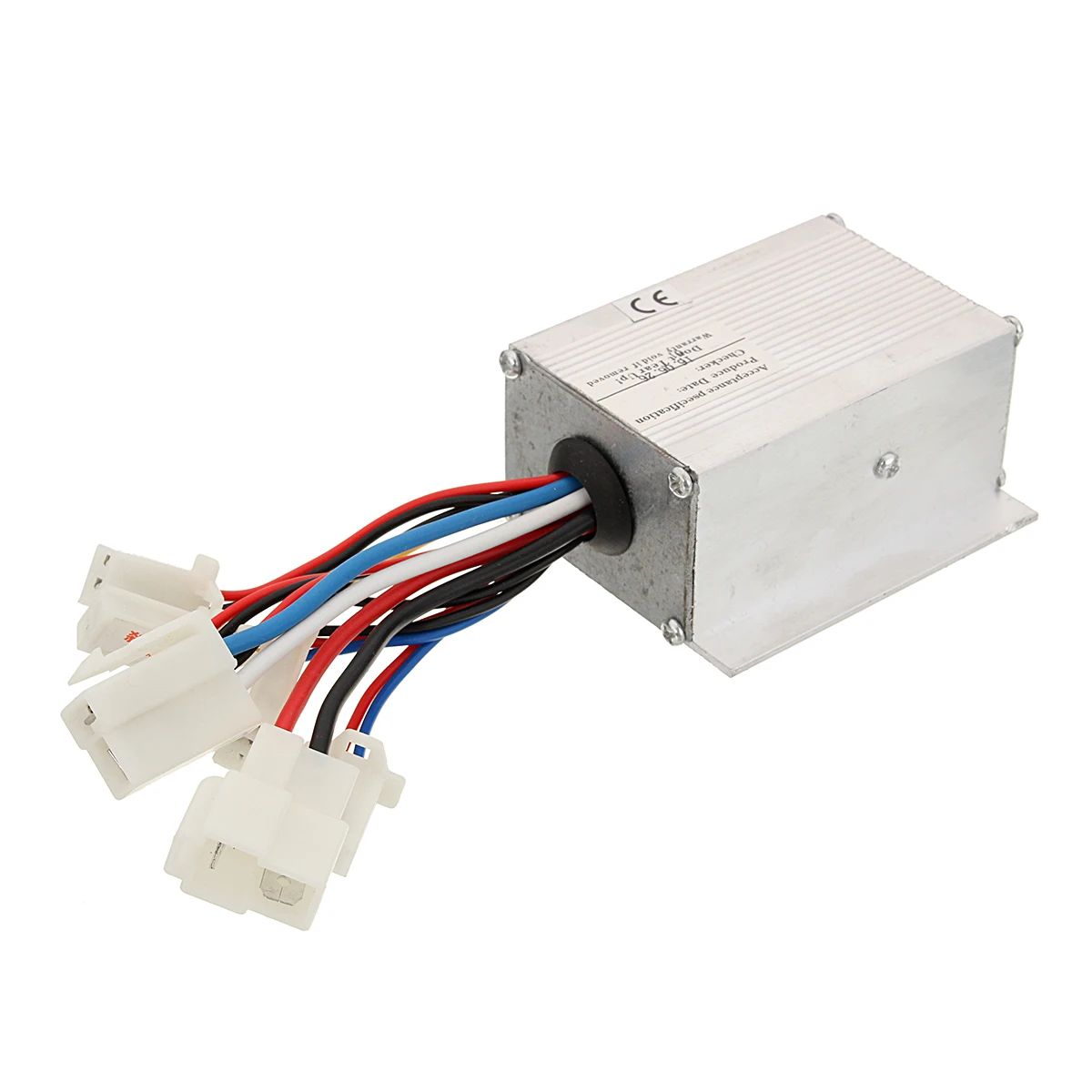

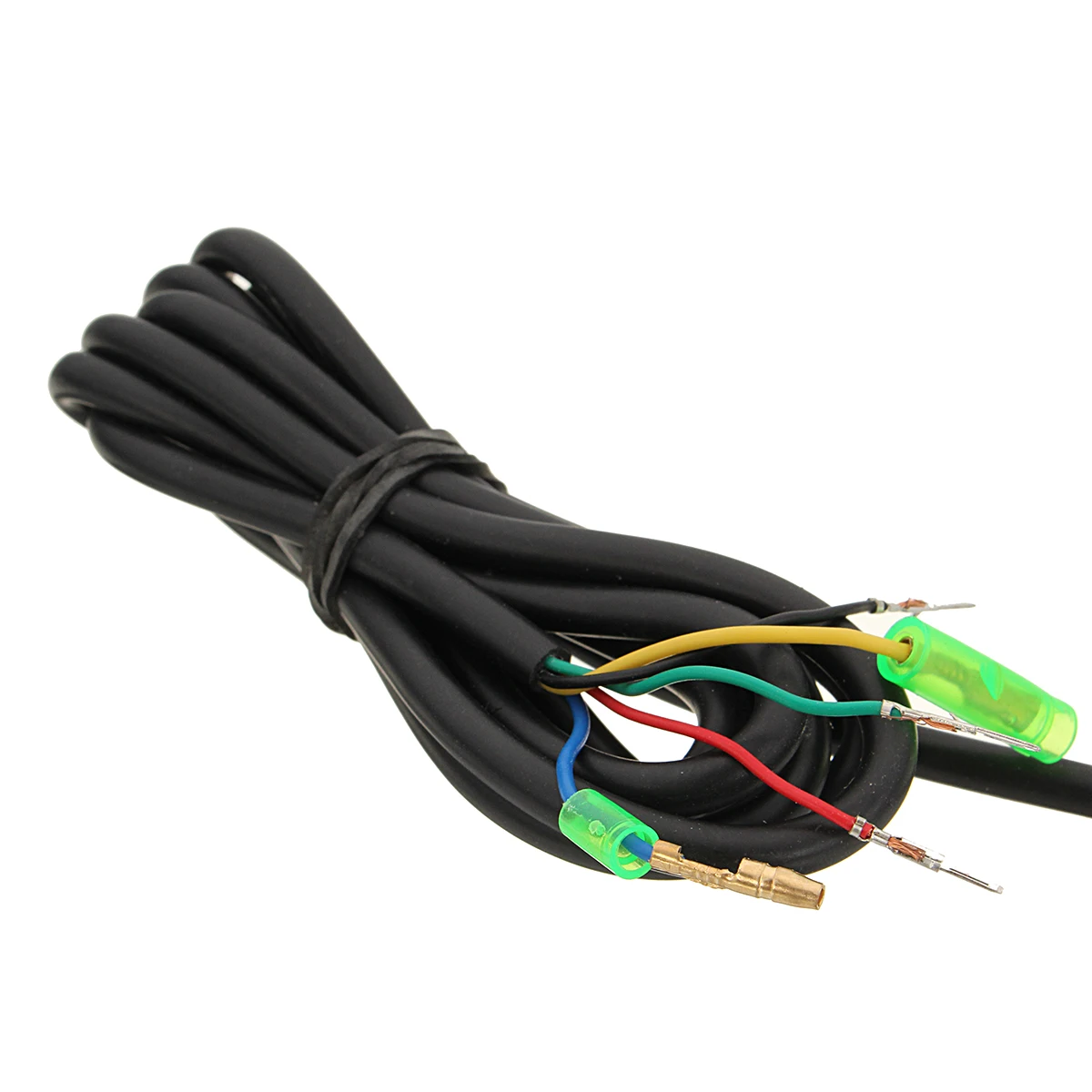

24V500WMotorBrushedControllerThrottleTwistGripForElectricBicycleScooterPowerDisplayControladorMotor Specification Brushed Controller : Size: Size: (Length x Width) 8cm x 6.5cm / 3.1" x 2.6" Motor brushed controller for Electric bicycle & scooter Rated voltage: dc 24 v Current limit : 28A Rated power: 500 w matching motor: dc brushed motor Under Voltage Protection: 20V Throttle Size: (Length x Diameter)10cm x 2cm / 3.9" x 0.8" Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator. Throttle Works Voltage: DC5V Speed Adjusting Signal:0.8V~4.3V Power display Voltage: DC 24V Power display: Normal: 23V above, 3 Led Green Half: 23V ~ 20V, Led Yellow Empty: 20V or less, Led Red Rotation angle: 0 °~ 70 ° Working temperature: -20 ℃~ +50 ℃ Fits standard 7/8 inches(22.2mm) handle bars Cable length is approximately 59 inches (1.5m) Qty: 2PCS (1 Twist throttle grip and 1 normal grip (matching thumb grip) ) Controller Wires Interface Definition Battery :Thick Black (Power Negative) /Thick Red (Power Positive) Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive) Ignition Switch :Thin Red(VCC)/Thin Blue Indicator : Thin red (Indicator power output) /thin black (indicator negative) Brake :thin yellow (Brake signal)/thin black(Negative Power) Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power) Charge Port : Thin red (charge input power Positive) /thin black (Power negative) Brake Light: Thin red (power Positive) /thin black (Power negative) Package Included 1 x 24V 500W Motor Brushed Controller 1 x Throttle Grip (with one Normal Grip) Notice 1、Please allow 1-3cm error due to manual measurement.Pls make sure you do not mind before you bid. 2、The color may have different as the difference display, pls understand. Throttle Wiring Diagram Throttle Controller Description Red connects to Red Voltage 4.3 to 5.0 Volts Blue connectsto Black or Yellow Ground Green connectsto Green, Blue or White Speed Adjusting Signal (0.8 to 4.3 Volts) Yellow connectsto Power positive Power display
Senin, 10 Februari 2020

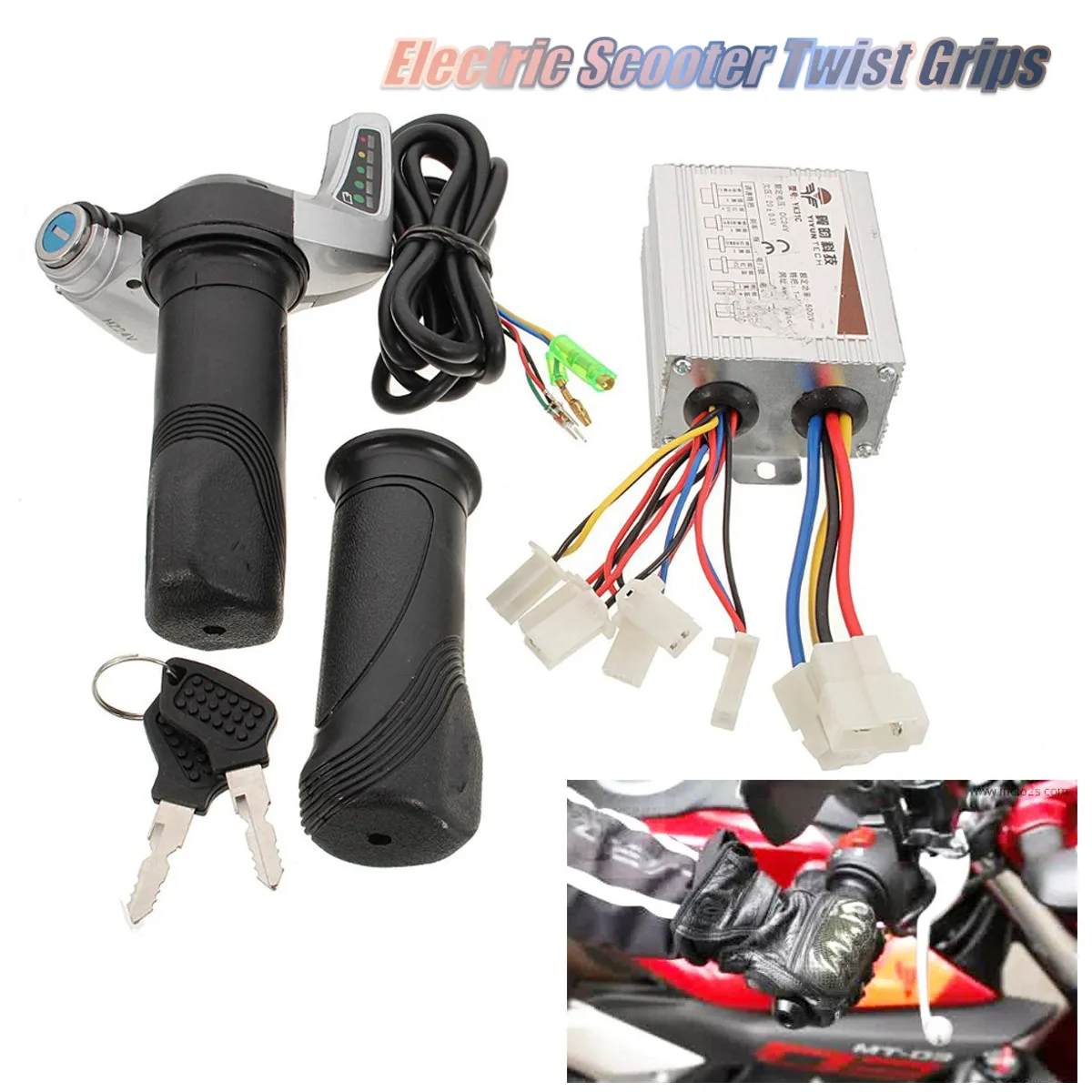

24V 500W Motor Brushed Controller Throttle Twist Grip For Electric Bicycle Scooter Power Display Controlador Motor
iLoveWedding 2019 O Neck Embroidery Pearl Beaded Custom made A Line Long Sleeves Pink Arabic Style Evening Dresses Long
CRYSTAL JIANG 2018 Sexy Halter Heavy Major Beaded Custom made Pink Long Gown Mermaid Luxury Sleeveless Formal Dress
Finove Evening Dress 2019 Long Sexy Lace Up Neck Line Lace Feathers Beading With Jacket Formal Party Woman Dress Robe de soiree
Sexy V-Neck Blush Pink Mermaid Evening Dresses 2019 Handmade Flowers Long Sleves Evening Gowns Serene Hill LA60774
CRYSTAL JIANG 2018 Sweetheart Formal Dress Women Elegant Short Sleeves A Line Custom made Fashion Prom Evening Dresses
Jersey Arabic Mermaid Evening Dresses Party Elegant for Women Celebrity Dubai Caftan Zipper Lace Saudi Arabia Formal Gown 2019
SSYFashion New Evening Dress White Backless Sexy V-neck Sleeveless Lllusion Beading Long Party Formal Gowns Robe De Soiree
Women Elegant Gray Long evening Dress 2019 Backless Sleeveless Printing Mermaid Formal Prom Gown vestidos elegantes YM20022
New Arrival 2018 O Neck Red Evening Gown Abiye gece elbisesi Custom made Long Sleeves Formal Ruffles Evening Dresses Long
Flower Evening Dresses Beading Pearls New Women Formal Gown For Prom Wedding Party Dresses Robe De Soiree
Long Golden Arab Evening Dress 2019 Puffy Elegant Ball Gown Glitter Sweetheart abendkleider Lebanon Design Women Formal Gowns
Sexy Deep V-neck Crystal Beads Long Evening Dresses 2019 Hot Sale Floor Length Prom Dress Party Dubai Serene Hill BLA6104
2019 New Prom Red Gown Prom Formal Round collar Elegant Mermaid Printing Lace Sleeveless Party Christmas Evening Dresses M1254
Finove Evening Dress 2019 Long Sexy Deep V Neck And Back Chic Sashes Beading Feathers Formal Party Woman Dresses Robe de soiree
Baby Blue V-neck Sleeveless Vestidos De Festa Luxury Crystal Sequins Beading A-line Formal Long Evening Dresses Prom Party Dress
Royal blue Gorgeous Evening Dresses Long 2019 Women elegant Appliques Sleeveless Lace Mermaid Plus size formal gown YM20026
Elegant Long White Mermaid Arabic Evening Dress 2019 Dubai Kaftan Formal Evening Gowns with Tassel Pearls Beading Prom Dresses
Long Puffy Women Evening Dress 2019 Cap Sleeve Ball Gown abendkleider Luxury Heavy Beaded Arabic Black Formal Evening Gowns
Custom Made Mermaid Long Sleeves Beading Dress
CEEWHY Vintage Saudi Arabia Evening dresses Beaded Luxury Evening Dress Open Back Prom Gowns Robe de Soiree Vestido Branco
Long Glitter Arabic Style Evening Dresses 2019 Puffy Ball Gown Spaghetti Strap Oman Women Formal Party Gown
Navy Blue Mermaid Evening Dress V Neck Beadings Crystal Floor Length Women Formal Party Dress Robe de soiree 2019 New Arrival
Modabelle High Slit Black Evening Dresses Robe Soiree Femme Gold Appliques Evening Dress With Sleeves Abito Da Cerimonia Donna
New Arrival Vestido longo 2018 O Neck Sleeveless Heavy Beadings Red Keyhole Back Mermaid Formal Luxury Evening Dresses Long
CEEWHY Formal Evening Dresses Sequinated Mermaid Dresses for Women Long Party Dress Luxury Evening Dresses Beaded vestido largo
Saudi Arabian Evening Dress For Women abendkleider abiye avondjurk Full Sleeves Long Formal Gowns Ball Gown Dubai robe de soiree
Elegant 2018 Strapless Evening Dresses Long with Flowers Appliques Sweep Train Tulle Formal Evening Party Dress Custom Made
Pink Long Lace Formal dress women elegant Sleeveless Backless Heart Party A-Line evening dresses for women Plus size
Gold Luxury Evening Dresses Long 2018 Mermaid Heavy Beaded Crystal Arabic Evening Gowns Formal Party Dress robe de soiree
Gorgeous Evening Dresses 2019 Backless Sexy Deep V Red Flame Long Formal Party Gowns Vestidos De Fiesta Floral Print YM20021
New Sky blue Gorgeous Printing Evening Dresses Sexy Backless Sleeveless Vestidos de novia 2019 Women Wedding Guest Party Dress
2018 Evening Dresses Long Women Sexy High Split Backless Lace Sleeveless Pink Casual Elegant Party women Evening Dress Plus size
2019 O-Neck A-Line Backless Prom Dresses Sexy Keyhole vestido de festa African High Split Evening Dresses Purple Color
Sexy Mermaid Prom Dresses Gold Color Sleeveless Crystal Beaded Floor Length Women Long Evening Gown Vestido De Festa 2019
Long Evening Dress 2019 Gorgeous One Shoulder Oman Handmade Flowers Saudi Arabia Sexy High Slit Champagne Formal Evening Gowns
YQLNNE New 2019 Luxury Evening Dress Pageant Dresses V-neck Beading Tassel Fashion Evening Gown Competition Gown Backless
Elegant Arabic Dubai Evening Dresses Half Sleeve Green Party Gown Satin Dress With Appliques abiye gece elbisesi
Dubai V-Neck Sexy Sparkle Tulle Long Evening Dresses 2019 Blush Pink Beach Sequined Tiered Evening Gowns Short Sleeve YeWen
Green Dubai Sleeveless Handmade Flowers Evening Dresses 2018 Diamond Luxury Beach Evening Gowns long formal dress YeWen
Pink Sling Lace Flower Pearl Evening Dresses 2019 Sexy Sleeveless Luxury Tulle Evening Gowns Real Photo LA60711
iLoveWedding Formal Dress Sweetheart Pink Lace Applique Beaded Custom made Off the Shoulder robe de soiree longue 2018
Saudi Arabia Mermaid Evening Dresses 2019 Dubai Kaftan Lace Green Tulle Floor Length Detachable Skirt Party Gowns for Women Wear
2018 Red Sexy Lace Evening Dresses Long High Split Backless Sleeveless Tulle Gowns for Wedding Party Robe de Soiree longue
Elegant Beading Sequined Peacock Blue Velvet Satin Women Evening Dress Long 2019 Arabic Dubai Evening Gown Party Dress
New Arrival Robe de soiree 2018 Sweetheart Lace Applique Beaded Custom made Mermaid Evening Dresses Long
Elegant Beading Evening Dress A-line 2019 Robe De Soiree See Through Back Deep V Neck Formal Prom Dress Vestido De Festa
Leeymon Elegant Glitter Shiny Evening Dress A-Line High Quality End Sweetheart Evening Party Dress robe de soiree Custom Made
Leeymon Custom Made Glitter Gradual Dress Elegant A-Line floor length Evening Dress Floor Length Evening Dress Dress
Type
Controller
Size
8cm x 6.5cm / 3.1\
Rated Voltage
DC 24 v
Rated Power
500W
Matching Motor
DC Brushed Motor
Under Voltage Protection
20V
Speed Adjusting Signal
0.8V-4.3V
Power Display Voltage
DC 24V
Working Temperature
-20 ~ +50
Function
Motor Brushed Controller Throttle Twist Grip
24V500WMotorBrushedControllerThrottleTwistGripForElectricBicycleScooterPowerDisplayControladorMotor Specification Brushed Controller : Size: Size: (Length x Width) 8cm x 6.5cm / 3.1" x 2.6" Motor brushed controller for Electric bicycle & scooter Rated voltage: dc 24 v Current limit : 28A Rated power: 500 w matching motor: dc brushed motor Under Voltage Protection: 20V Throttle Size: (Length x Diameter)10cm x 2cm / 3.9" x 0.8" Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator. Throttle Works Voltage: DC5V Speed Adjusting Signal:0.8V~4.3V Power display Voltage: DC 24V Power display: Normal: 23V above, 3 Led Green Half: 23V ~ 20V, Led Yellow Empty: 20V or less, Led Red Rotation angle: 0 °~ 70 ° Working temperature: -20 ℃~ +50 ℃ Fits standard 7/8 inches(22.2mm) handle bars Cable length is approximately 59 inches (1.5m) Qty: 2PCS (1 Twist throttle grip and 1 normal grip (matching thumb grip) ) Controller Wires Interface Definition Battery :Thick Black (Power Negative) /Thick Red (Power Positive) Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive) Ignition Switch :Thin Red(VCC)/Thin Blue Indicator : Thin red (Indicator power output) /thin black (indicator negative) Brake :thin yellow (Brake signal)/thin black(Negative Power) Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power) Charge Port : Thin red (charge input power Positive) /thin black (Power negative) Brake Light: Thin red (power Positive) /thin black (Power negative) Package Included 1 x 24V 500W Motor Brushed Controller 1 x Throttle Grip (with one Normal Grip) Notice 1、Please allow 1-3cm error due to manual measurement.Pls make sure you do not mind before you bid. 2、The color may have different as the difference display, pls understand. Throttle Wiring Diagram Throttle Controller Description Red connects to Red Voltage 4.3 to 5.0 Volts Blue connectsto Black or Yellow Ground Green connectsto Green, Blue or White Speed Adjusting Signal (0.8 to 4.3 Volts) Yellow connectsto Power positive Power display
24V500WMotorBrushedControllerThrottleTwistGripForElectricBicycleScooterPowerDisplayControladorMotor Specification Brushed Controller : Size: Size: (Length x Width) 8cm x 6.5cm / 3.1" x 2.6" Motor brushed controller for Electric bicycle & scooter Rated voltage: dc 24 v Current limit : 28A Rated power: 500 w matching motor: dc brushed motor Under Voltage Protection: 20V Throttle Size: (Length x Diameter)10cm x 2cm / 3.9" x 0.8" Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator. Throttle Works Voltage: DC5V Speed Adjusting Signal:0.8V~4.3V Power display Voltage: DC 24V Power display: Normal: 23V above, 3 Led Green Half: 23V ~ 20V, Led Yellow Empty: 20V or less, Led Red Rotation angle: 0 °~ 70 ° Working temperature: -20 ℃~ +50 ℃ Fits standard 7/8 inches(22.2mm) handle bars Cable length is approximately 59 inches (1.5m) Qty: 2PCS (1 Twist throttle grip and 1 normal grip (matching thumb grip) ) Controller Wires Interface Definition Battery :Thick Black (Power Negative) /Thick Red (Power Positive) Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive) Ignition Switch :Thin Red(VCC)/Thin Blue Indicator : Thin red (Indicator power output) /thin black (indicator negative) Brake :thin yellow (Brake signal)/thin black(Negative Power) Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power) Charge Port : Thin red (charge input power Positive) /thin black (Power negative) Brake Light: Thin red (power Positive) /thin black (Power negative) Package Included 1 x 24V 500W Motor Brushed Controller 1 x Throttle Grip (with one Normal Grip) Notice 1、Please allow 1-3cm error due to manual measurement.Pls make sure you do not mind before you bid. 2、The color may have different as the difference display, pls understand. Throttle Wiring Diagram Throttle Controller Description Red connects to Red Voltage 4.3 to 5.0 Volts Blue connectsto Black or Yellow Ground Green connectsto Green, Blue or White Speed Adjusting Signal (0.8 to 4.3 Volts) Yellow connectsto Power positive Power display
